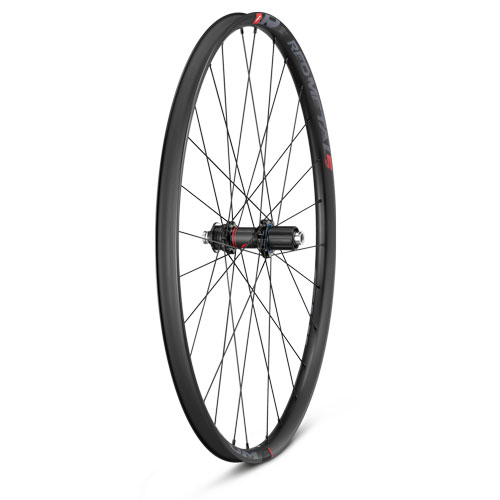

FULCRUM RED METAL 5 29 BOOST 2WF-R AFS

A set of wheels with no boundaries, so as not to set limits, both uphill and downhill.

Red Metal 5 was conceived with versatility in mind: light and solid, built with attention to materials and finishes. The technical data, however, is not everything: excursions to new destinations will better define the soul of this specific trail riding wheel.

Reliability is a focal point, driving precision makes the difference: the 27 mm wide channel offers an ideal support base when cornering and allows the shoulder of the tire to attack the ground without the slightest dispersion.

The 28-spoke straight-head construction also ensures solidity and reactivity in the presence of any obstacle. With an mtb-trail wheel like this, there will be no limits to exploring new boundaries, because it will always be ready, a trusted companion.

TECHNOLOGIES
AFS AXLE SYSTEM™ONE HUB FITS ALL2WAY - FIT™ READY (MTB)MICROSPLINE FREEHUB

FEATURES
TYRE TYPE 2-Way Fit Ready (for clincher and tubeless ready)
TYRE SIZE 29"
DISCIPLINE Trail / Enduro
ASTM CATEGORY 3
WEIGHT Boost 1950 g.
RIM MATERIAL Aluminum
RIM MATERIAL DETAILS Aluminum, sleeved joint
RIM HEIGHT Front and rear: 20 mm
RIM WIDTH 32 mm
INNER RIM WIDTH(CHANNEL) 27 mm
TYRE WIDTH From 2.0” to 2.5
BRAKING SYSTEM Disc brake
BRAKING OPTIONS AFS
FRONT AXLE COMPATIBILITY HH15-110 Boost
REAR AXLE COMPATIBILITY HH12-148 Boost
FRONT WHEEL SPOKES 28, Left 14 - Right 14
REAR WHEEL SPOKES 28, Left 14 - Right 14
SPOKES: MATERIAL Stainless steel
SPOKES: PROFILE Rounded, straight pull
NIPPLES Aluminum
FRONT HUB Aluminum, Aluminum flanges
REAR HUB Aluminum, Aluminum flanges
BEARINGS Sealed cartridge bearings
OTHERS Aluminum Axle. One hub fits all
WEIGHT LIMIT 109 kg (Cyclist)
FWB VERSION HG11, XD
