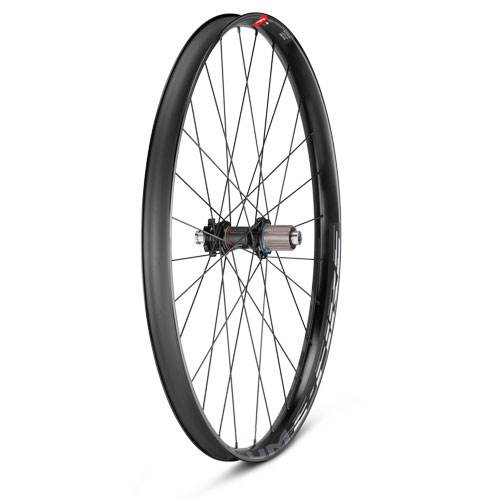

FULCRUM E-FIRE 5 2WF-R 6 BOLTS

Smooth,solid, precision steering.
E-Fire 5 is a mix of technologies and quality in a model that aims to be an introduction tothe meaning of “specialist”, E-MTB specific and perfect for gravity.

A confident gradual response to stress means even the most difficult obstacles can becleared easily and safely, enabling maximum concentration on riding right fromthe first few meters because reactions will always match the trail ahead.

Choosing aE-MTB specific set means deciding to ride with technologies designed to improvethe dynamic behavior of your bike, pushing those boundaries and starting totruly race.

TECHNOLOGIES
ASYMMETRIC RIM2WAY - FIT™ READY (MTB)DIFFERENTIATED PROFILE DELTA FOR E-MTBIN-FRAMESPECIFIC NIPPLE HOUSINGREINFORCED HEAD SPOKESREINFORCED DISC FLANGEREINFORCED FREEHUB SYSTEMMICROSPLINE FREEHUB

FEATURES
TYRE TYPE 2-Way Fit Ready (for clincher and tubeless ready)
TYRE SIZE 27,5"
DISCIPLINE Trail / Enduro
ASTM CATEGORY 3 (4 weight limit 130 kg)
WEIGHT 2200 g
RIM MATERIAL Aluminum
RIM MATERIAL DETAILS Aluminum, sleeved joint
RIM HEIGHT Front: 23,5 mm / rear: 18,5 mm
RIM WIDTH 40 mm
INNER RIM WIDTH(CHANNEL) 35 mm
TYRE WIDTH From 2.2” to 3.0”
BRAKING SYSTEM Disc brake
BRAKING OPTIONS 6 bolts
FRONT AXLE COMPATIBILITY HH15-110 Boost
REAR AXLE COMPATIBILITY HH12-148 Boost
FRONT WHEEL SPOKES 28, Left 14 - Right 14
REAR WHEEL SPOKES 28, Left 14 - Right 14
SPOKES: MATERIAL Burnished steel
SPOKES: PROFILE Rounded 2.0 mm, straight pull, reinforced head
NIPPLES Brass, self locking
FRONT HUB Aluminum, Aluminum flanges
REAR HUB Aluminum, Aluminum flanges
BEARINGS Sealed cartridge bearings, adjustable
OTHERS Aluminum Axle.
WEIGHT LIMIT 150 kg (System)
FWB VERSION HG11, MS12 optional: XD
